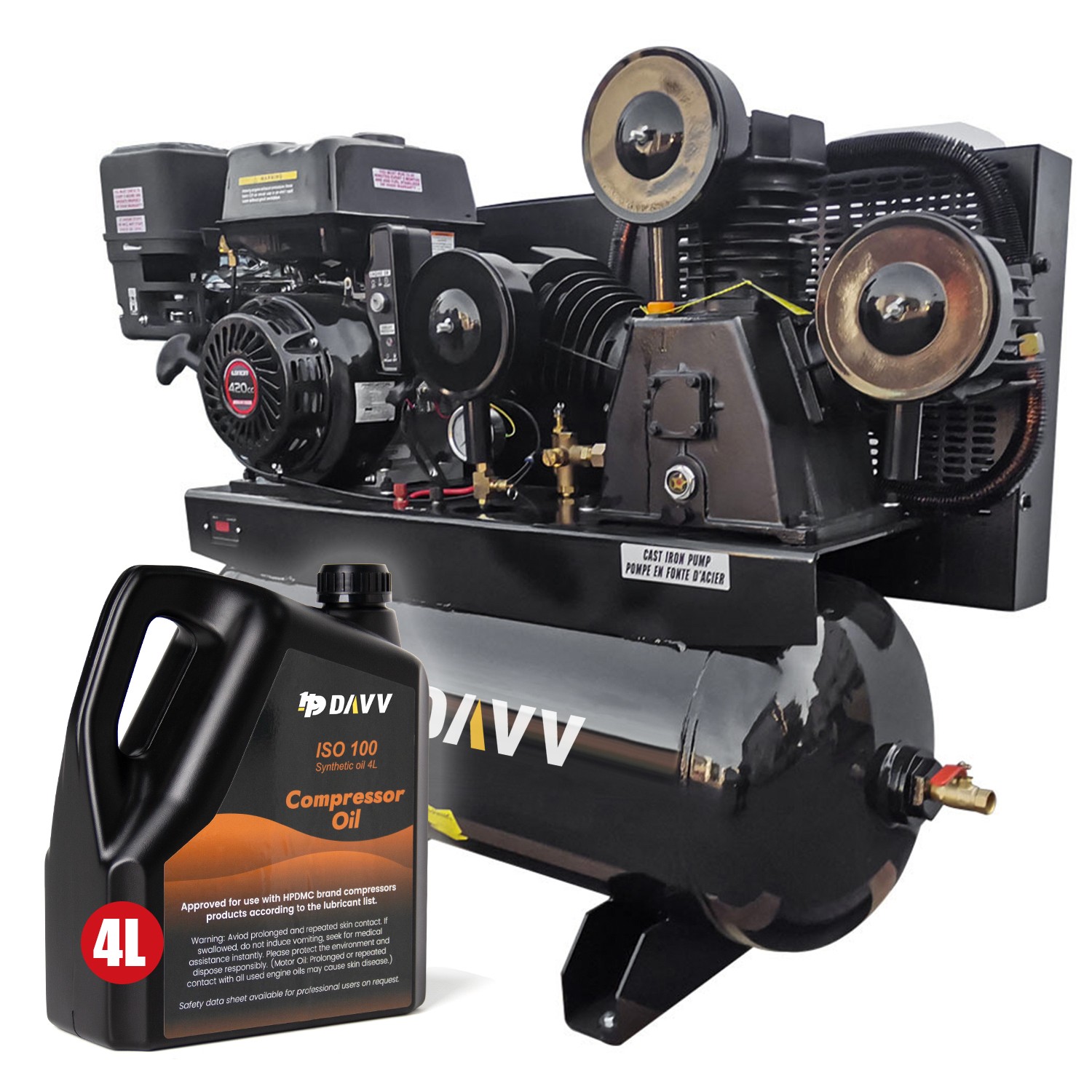

Portable Gas Engine Piston Air Compressor

【Description】

Type : Gas piston compressor

Model Power:13HP

Max. Pressure : 125 psi

Air Flow: 35cfm

NO.OF CYL:3
Output Pipe Diameter : 1/2"

Compression level: One-stage compression

Package Dimensions:43*17*38inch

Packing Weigth: 353 lbs


【Advantages】
Powered by a 420cc overhead valve gas engine with electric start and recoil backup

Heavy duty cast iron head and oil lubricated two-stage pump

ASME certified tank, throttle control and unloader valve

Cast iron cylinder for long life and durability

Easy-to-read pressure gauge, shut off pressure switch, ASME certified tank pressure relief valve, and low oil engine shutdown for added safety

Oil level viewing window and tank drain plug for easy maintenance

Sturdy steel legs with truck bed mounting holes


【Mounting to a Truck Bed】
Easily mounts in truck or service vehicle. This Product are designed exclusively for the heavy duty needs of the mechanic shop, livestock operation and service truck.
The two stage, cast iron, industrial air compressors work hard for serious industrial auto body and agricultural use.
Equipped with an iron construction with cast cylinder sleeves, this pump head is designed for a long time use and is easy for maintenance.

【Multiple Applications】
The air compressor pump is widely used for chemical industry, light industry, textile, food processing, health, electronics, machinery, mining, construction, scientific research and other requirements of high-quality compressed air sector.Ideally suitable for variable air demand from low to medium volumes, also providing either direct driven from the motor or belt driven via pulleys from the motor.
